Items
|
Parameter
|
|
system
|
Operating language
|
Chinese/English
|
|
operating system
|
Linux
|
|
User Interface
|
Support APP operation interface;
|
|
GUI
|
none;
|
|
Processor and CPU
|
CPU
|
ARM Dual-Core processor@1.5GHz
|
|
Memory
|
External DDR 2Gb * 2Total
memory 4Gb
|
|
Flash
|
2 Gb
|
|
Video and recording system
|
Video Input
|
Resolution: front 2K
30 fps, rear 1080P 30fps

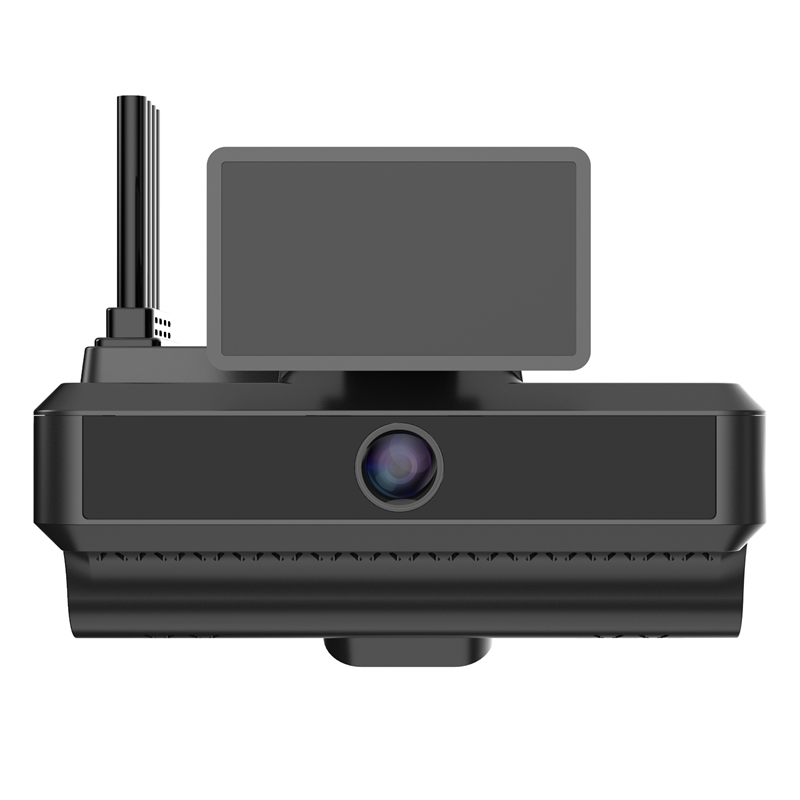

Front 2K sensor, 130 ° viewing angle

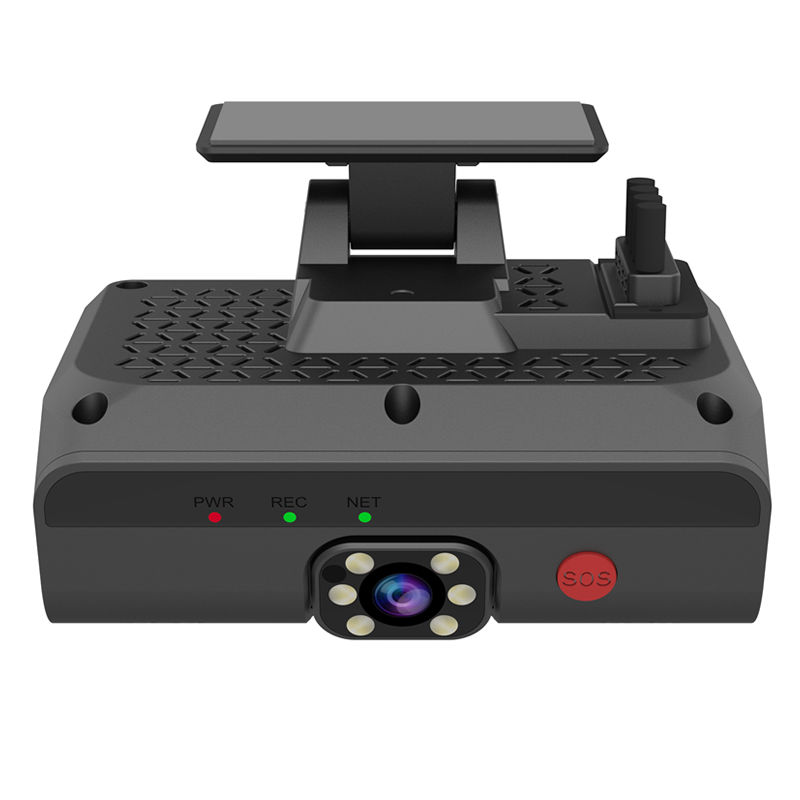

Rear 1080P sensor, horizontal 135 ° , supports IR-CUT, with
infrared night vision function
|
|
Expand 2 channels 1080P
30fps
|
|
Video Standards
|
NTSC format ( default)
|
|
Video compression format
|
H.264/H.265 compression format
|
|
Preview Features
|
Single channel, 4/9 screen splicing preview, support manual/event
trigger full screen display function
|
|
Video resolution
|
Support 1080P, 720P, D1, HD1, CIF optional, total encoding resources 1080P 150 fps
|
|
Video quality
|
1 to 8 levels of image quality, 1 is the best, 8 is the lowest
|
|
Recording rate
|
PAL : 100 frames /s, CCIR625
line, 50 fields
NTSC : 120 frames /s, CCIR525 line, 60 fields;
CIF: 256Kbps ~ 1.5Mbps, multiple
quality levels available
HD1: 600Kbps ~ 2.5Mbps, multiple
quality levels available
D1 : 800Kbps ~ 3Mbps, Multiple levels of image
quality optional
720P: 1Mbps-4Mbps , Multiple levels of image quality optional
1080P: 1Mbps~8Mbps, multiple
levels of image quality optional
2K:
|
|
Video recording method
|
Automatic recording by default, supports ignition recording, alarm
recording, sentry recording , etc.
|
|
Audio
|
Audio Input
|
2-channel
audio input, CH1/CH2 built-in MIC
|
|
Audio Output
|
1 channel, built-in speaker (≤8 Ω 2W)
|
|
Compression format
|
G.711A compression format
|
|
Recording method
|
Synchronous recording of audio and video
|
|
Alarm input
|
2 alarm inputs
|
|
Alarm output
|
1 low-level output (supports remote oil and power cut-off functions,
can be connected to relays)
|
|
Communication interface
|
2-way
RS232 interface, can be expanded to include card reader, oil level sensor,
etc.
|
|
1-way 1-Wire single bus
interface supports i Button driver identification ;
|
|
Wireless transmission
|
Built-in 4G
wireless transmission function, support voice calls ,
sleep reporting, TDD-LTE, FDD-LTE (support CAT1 and CAT4) (EC 200 A - EU /AU series
supports voice calls, others do not support it yet)
|
|
WIFI: Wireless
802.11b/g/n 2.4G (built-in antenna)
|
|
Bluetooth: Support
Bluetooth low energy wake-up, Bluetooth key, driver ID management and other
functions
|
|
GPS Positioning
|
Support built-in GPS / BD module, support GPS data retransmission,
first-in-first-out
|
|
Reset button
|
Restore WIFI default
password in 3 seconds, restore to factory settings in 8 seconds; (WIFI
emergency wake-up: press for 15 seconds)
|
|
Wake-up method
|
ACC wake-up, Gensor
vibration wake-up, Bluetooth wake-up, radar wake-up, 4G wake-up (phone/SMS)
|
|
sensor
|
Built-in 3-axis accelerometer
|
|

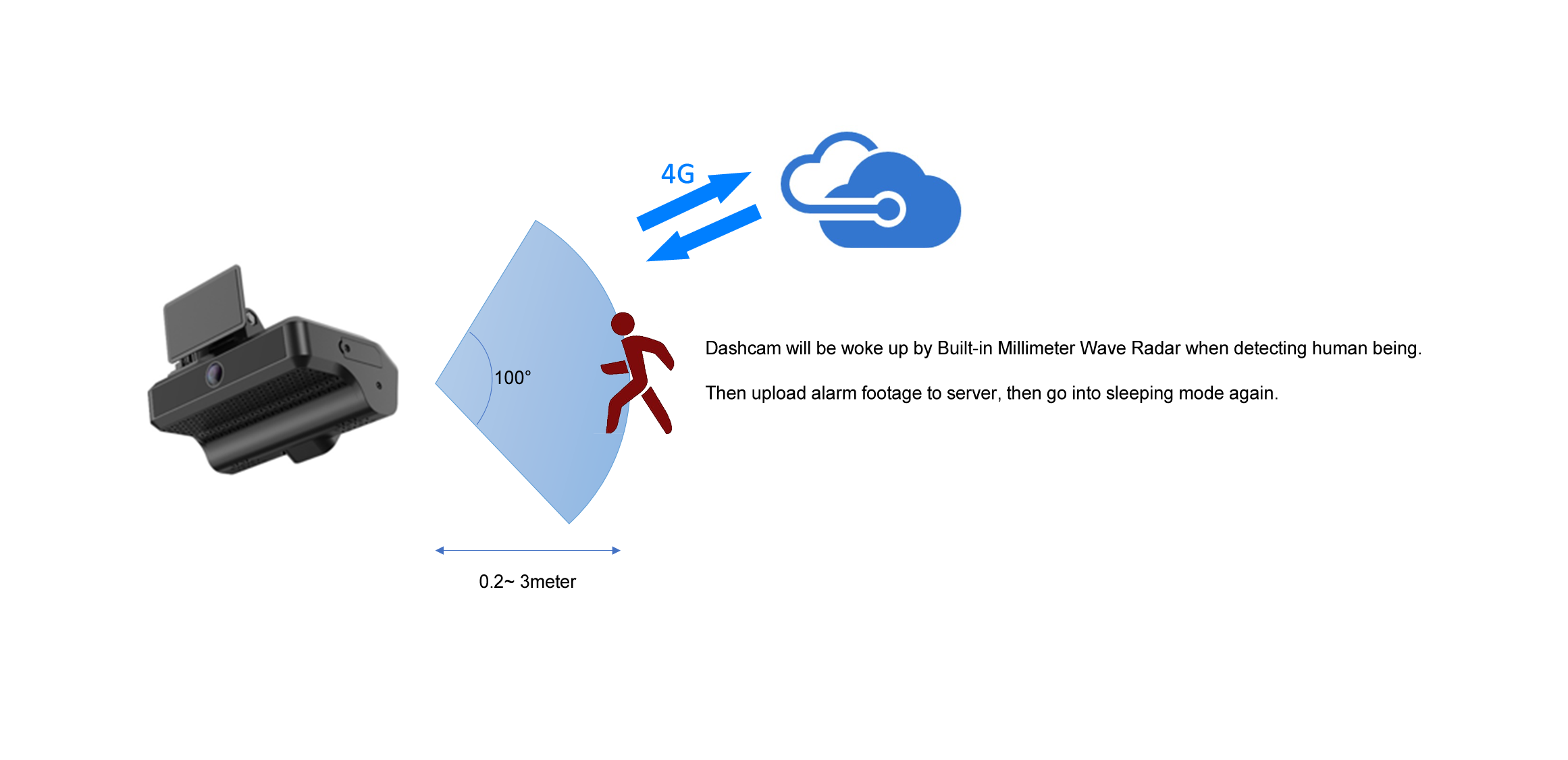

Millimeter wave
radar
|
Support
full-time sentinel mode (optional
to enable sentinel mode during flameout delay)
|
|
disk
|
TF card
|
Maximum
support 512G (1T TF card is required for testing)
|
|
Upgrade method
|
Support TF card
upgrade, FTP remote automatic upgrade
|
|
Storage
|
Proprietary raw
disk storage method
|
|
SIM card interface
|
1 SIM card
interface (large or medium)
|
|
AI Algorithms
|
ADAS
|
Lane departure, collision
detection, pedestrian, vehicle distance detection, etc.
|
|
DSM
|
Fatigue driving detection,
smoking, phone call detection, video occlusion alarm, unsafe driving behavior
detection, face recognition, etc.
|
|
BSD
|
Left and right blind spot
detection
|
|
Power supply and power consumption
|
Power Management
|
Adaptive wide power input, with overload, undervoltage, short
circuit, reverse connection and other protection functions; supports timed
power on and off, delayed shutdown functions.
|
|
Input voltage
|
DC:+9V ~ +36V
|
|
Output voltage
|
+5V@1A/+25℃
|
|
Power failure
protection
|
Built-in 2 15F/2.7V Farad capacitors, support abnormal power off to
ensure the integrity of video files
|
|
Power consumption
|
Normal working state <5W (without peripherals)
|
|
Work Environment
|
temperature
|
-20℃ to +70℃
|
|
humidity
|
10% to 90%
|
|
Security Management
|
Password access
|
Two-level management of user password and administrator password
|
|
Platform access
|
JT/T808-2013, JT/T808-2019
|
|
JT/T1076-2016, JT/T1078-2016, CMSV6 protocol
|
