70mm diameter ADAS Head Up Display

TLG70M

Description

l70mm Diameter

lBult-in Buzzer Alarm

lBuilt-in Inertial GPS Module & Antenna

lNEMA 0183 GNRMC/GNGGA via RS232 interface

lProgrammable Over Speed Alarm

lRS232 interface with 115200 baud rates

lHarsh Events Alarm via RS232 interface

Harsh Braking

Harsh Acceleration

Harsh Cornering

Harsh Lane Departure

Collision

lAlarm Indicator:

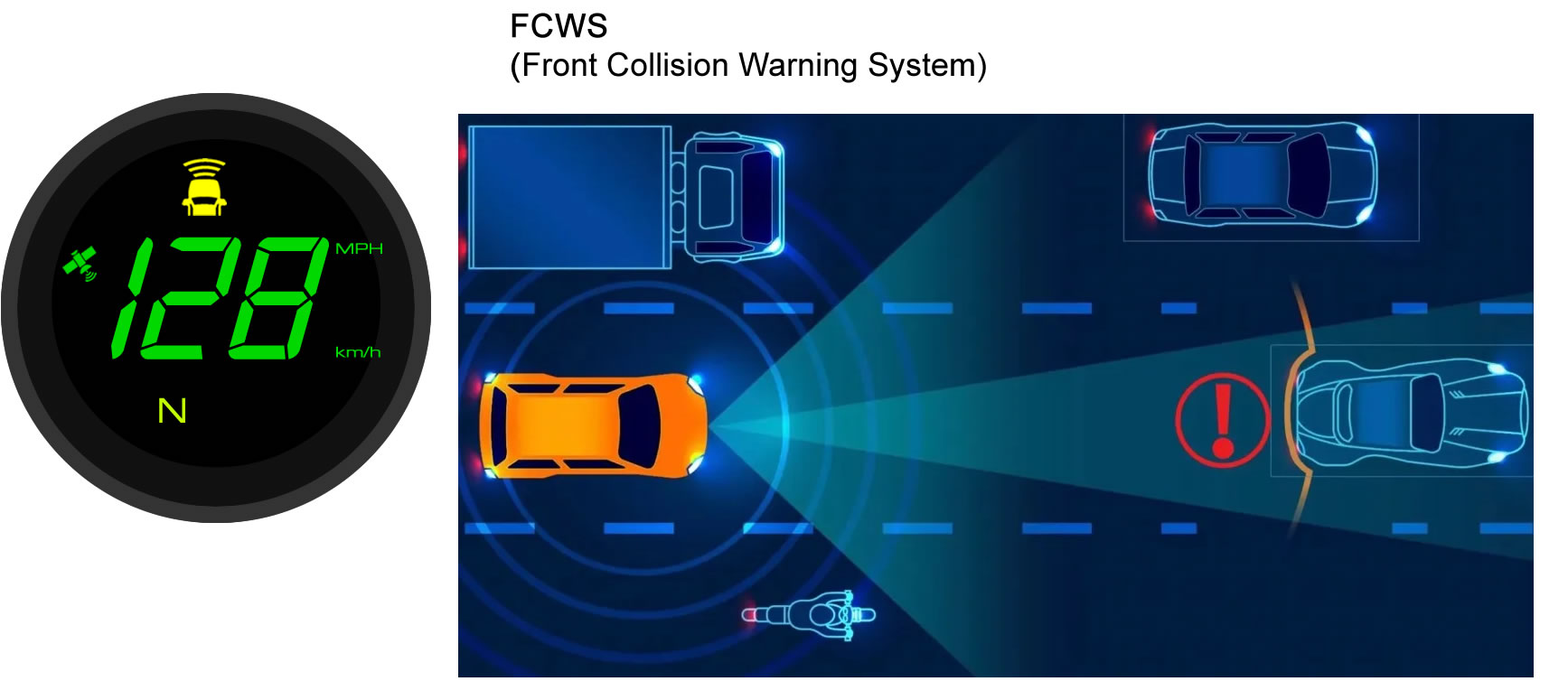

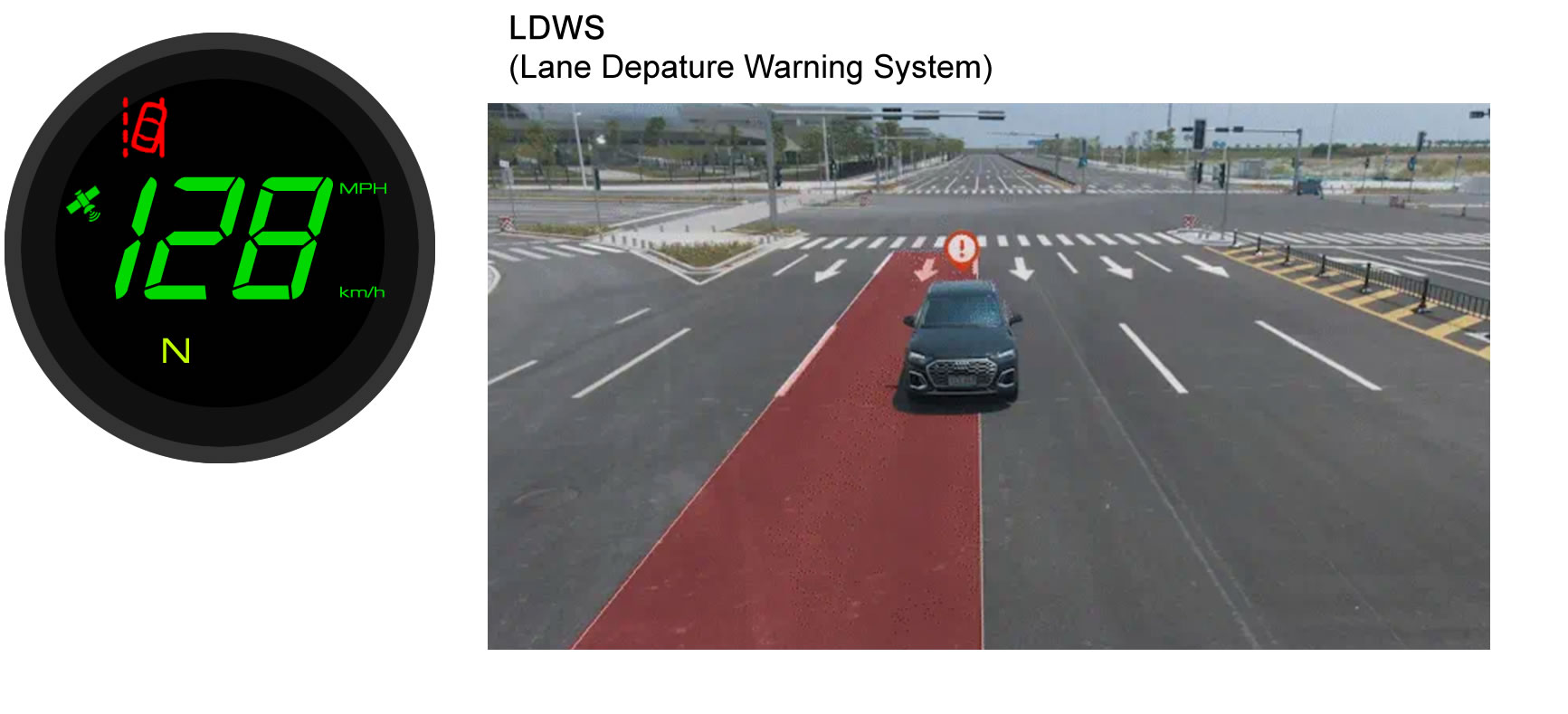

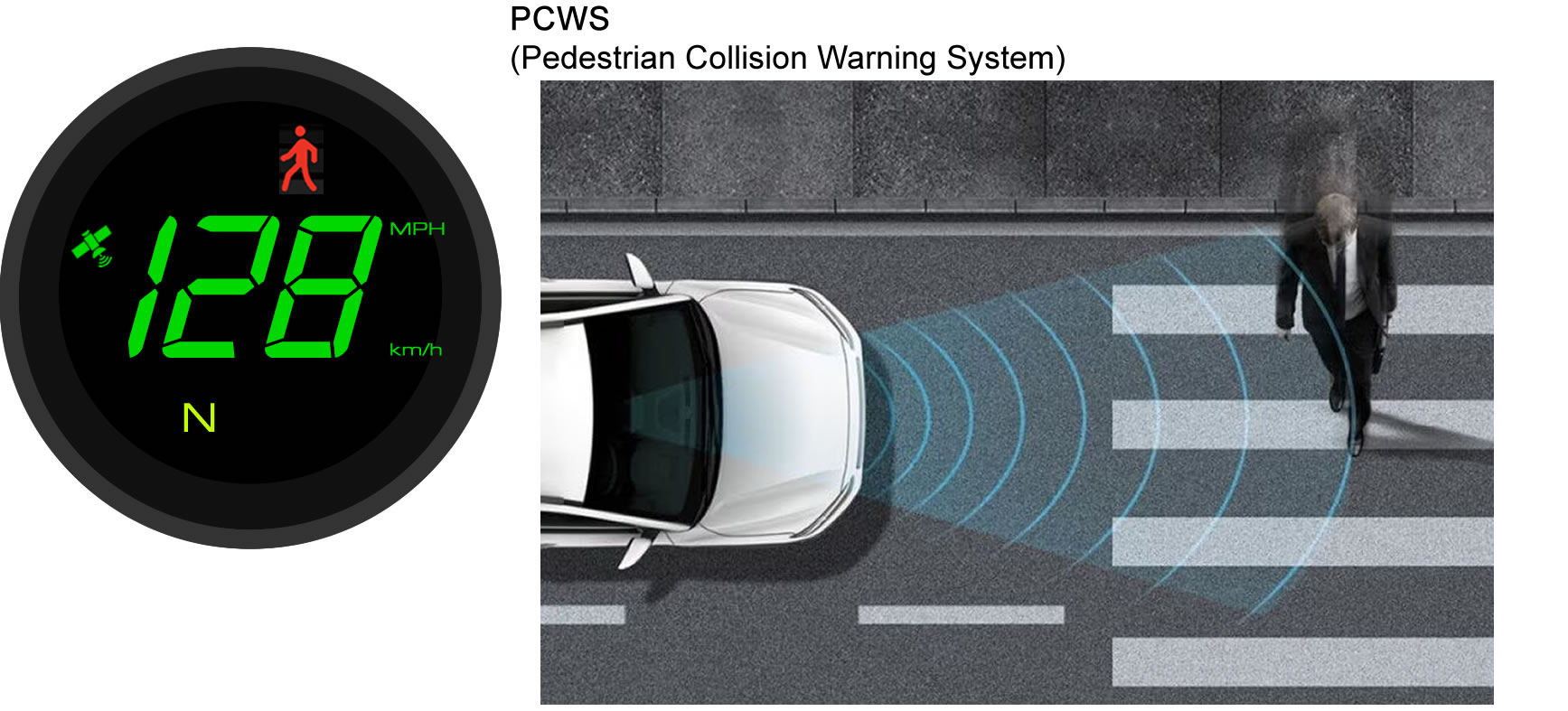

ADAS: FCW/LDWS/PCW

DSM: Fatigue

Blind Spot Alarm

lBuilt-in Accelerometer & Gyroscope Sensor

lSwitchable Km/h or MPH show

l12/24V DC

lWorking Temperature: -30~ 70℃

lPower Supply: 5~36V DC

lInstallation: Adhesive Sticker

Road Driving Alarm: youtu.be

Features

RS232 Interface Protocol

Baud Rate:115200

1) Input from Ai Dashcam/DVR

Example: *TA,81,120,10#19

Model

Description

Working in Tunnel & Harsh Events Alarm

Exw USD Price

TLG70M

Normal HUD ADAS GPS Speedometer

TLG70-GM

Internal Navigation HUD ADAS GPS Speedometer

(working in Tunnel/Underground)

√

Content	Explain	Data Type
*	Fixed Head	ASCII
TA	Device Type	ASCII
81	Ai Unit Firmware Version V81	DEC
120	Speed Limit detected by ADAS camera from Road Sign, unit:km/h or mph, Keep blank if nothing detected	DEC
10	ADAS Alarm Status 10：Normal 11：Left Lane Departure Alarm 12：Right Lane Departure Alarm 13：Front Collision Alarm 14：Pedestrian Collision Alarm 15：Left Blind Spot Alarm 16：Right Blind Spot Alarm	DEC
#	End	ASCII
19	BCC checksum of all data between * and #	HEX

Reference command example:

*TA,81,120,11#03 Left Lane Departure Alarm

*TA,81,120,12#00 Right Lane Departure Alarm
*TA,81,120,13#01 Right Lane Departure Alarm
*TA,81,120,14#06 Pedestrian Collision Alarm
*TA,81,120,15#07 Left Blind Spot Alarm

*TA,81,120,16#04 Right Blind Spot Alarm

*TA,81,120,10#02 Normal

2) RS232 Output GNRMC/GNGGA standard GPS data & harsh event alarm Debug data:

$GNRMC,080507.00,A,2246.50793,N,11424.32228,E,8.37,245.4,240621,85.28,0,A*6A
$GNGGA,080507.00,2246.50793,N,11424.32228,E,6,10,49.5,-5.71,M,-1.40,M,0.00,0000*6F

$DEBUG,0,0,1,0.00,0.00,0,0,0,0,4,3,0,0,0,1,0,4,27363,1,10,0.00,N,0,0,0,0,15,0*05

3) DEBUG Harsh Events Alarm data protocol (refer to independent protocol)
